Z29 Series Mechanical Compaction Table

Purpose:

This machine is primarily used for compacting sand molds during the molding process with resin sand and sodium silicate sand. It can also be used for compacting clay sand or other self-hardening sand molds, making it an ideal equipment for sand mold compaction in the foundry industry.

Features:

1. The device has a compact and reasonable structure, is easy to operate, and has a wide range of applications.

2. The vibrating body is supported by pneumatic springs, ensuring a large and stable excitation force during operation.

3. The excitation force can be adjusted in a timely manner according to process requirements.

4. The electrical system of this machine is integrated with the sand mixer and employs a Programmable Logic Controller (PLC) for ease of operation and maintenance.

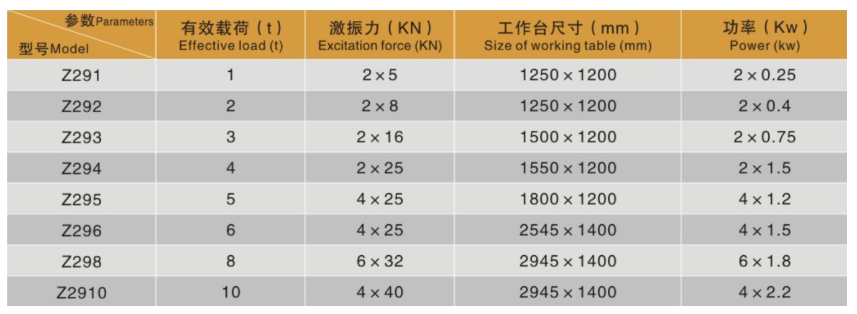

Main technical parameters:
