S28 series mobile sand mixer

Purpose:

This equipment is a mobile double-arm medium-speed continuous sand mixer, designed for mixing self-hardening sand and sodium silicate sand. It is suitable for large and medium-sized molding and core making, and when paired with corresponding auxiliary machines, can form a large and medium-sized molding production line.

Features:

1. Both the large and small arms of this machine can rotate, and the combined movement of the large and small arms can ensure a certain shaping area.

2. The boom adopts a spiral conveying method, featuring motorized rotation for convenient operation.

3. The liquid material supply system adopts frequency conversion adjustment, allowing for adjustable flow rate and high quantitative accuracy.

4. The sand mixing tank can be opened and closed along its length and is lined with stainless steel, facilitating maintenance and cleaning.

5. The mobile trolley adopts frequency control for speed regulation, ensuring smooth movement.

6. The entire machine adopts PLC programmable control, which is easy to operate, can be adjusted for different processes, and features stable performance, safety, and reliability.

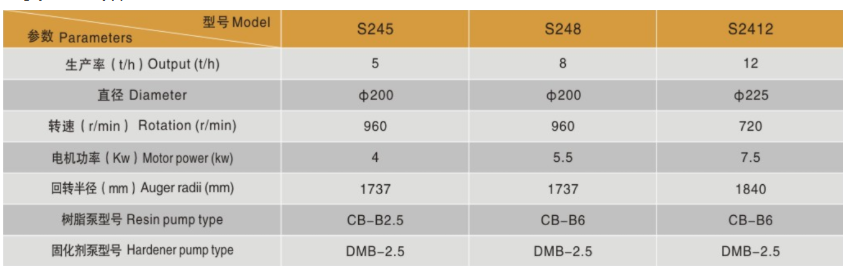

Main technical parameters:
