S25 series fixed double-arm sand mixer

Purpose:

This series of double-arm continuous resin sand mixing machines are primarily used for mixing resin self-hardening sand and water glass sand.

Features:

1. The adhesive supply system utilizes advanced gear pumps, diaphragm pumps, and liquid level detectors for accurate measurement.

2. The sand mixing time is short, with no loss of head or tail sand, and the dual-arm rotation is flexible, covering a large operation area.

3. The adoption of a fully open sand mixing cage arm facilitates blade cleaning or adjustment, making operation and maintenance convenient.

4. Installing advanced sand discharge and dust removal devices can further reduce the fine powder content of sand, eliminate odors, and significantly decrease the amount of binder added, thereby improving the quality of molding sand and ensuring good economic benefits.

5. The electrical equipment is controlled by PLC, with sufficient restriction and protection, and displayed on an analog screen, ensuring stable and reliable operation and achieving automated production.

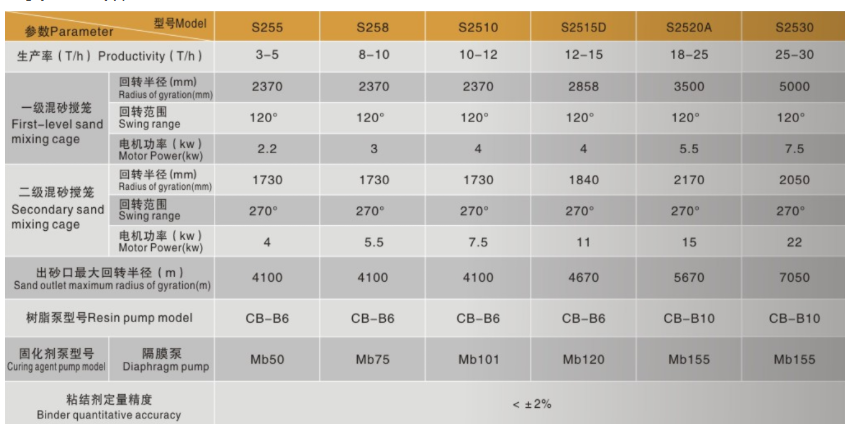

Main technical parameters:
